DSR800 Band1

Details
Variations

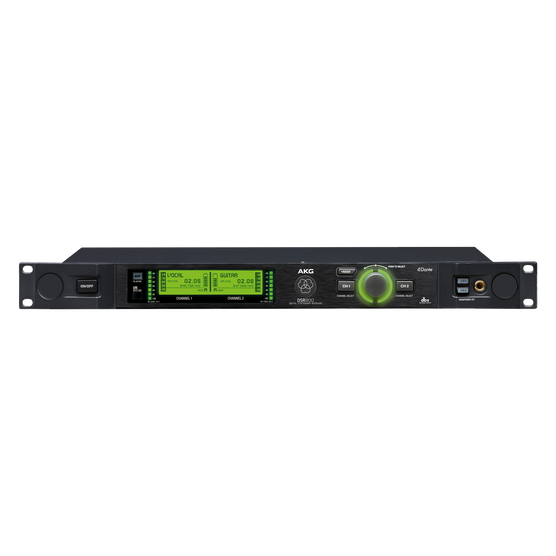

Reference digital wireless stationary receiver

This item is currently not available to order online directly from AKG.

Available at a retailer nearer to you

For bulk enquiries write to HPro.APAC@harman.com.

Two channels in a compact 19” metal casing

For secure rack-mounting and transportation

Graphic spectrum analyzer

Provides a clear overview of radio frequencies

User-friendly operation

By fast and intuitive system setup

Integrated digital signal processing

With low-cut filter, three-band equalizer, dbx® compressor and dbx limiter

Analog and digital audio outputs

2 x balanced XLR, 2 x unbalanced ¼” jack connectors, AES EBU output and DANTE output

Even more digital

The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals.

For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.

Item# 3380H00100

General Specifications

Power Supply 100 - 240 V AC, 50 - 60 Hz, 0.4 A
Racksize Full Racksize (19)
Rackheight 1 RU
Carrier frequency range (country-dependent) Band 1 = 548.1 – 697.9 MHz
Switching bandwidth ≤ 150 MHz (country-dependent)
Channels 2 (dual receiver)
Sensitivity 10 dBµV / -97 dBm
Image frequency and spurious attenuation ≥ 95 dB
Receiver design Super-Heterodyne
Diversity system Digital True Diversity
Antenna inputs 2 x 50 Ω BNC sockets
Bass roll off 2nd order shelving filter, selectable betw. 10–300Hz
Equalizer 3-band (amplification or padding of the lows, mids and highs)
Compressor dbx® (parameters
Limiter dbx® (parameter = usage threshold)
Transmitter battery indicator 7‑segments
PC interface Ethernet via HUB4000 Q (optional) ; Ethernet via Dante™ (100 Mbit/s) ; Software HiQnet Audio Architect

Dimensions

Length 480 mm
Height 45 mm
Width 230 mm
Net Weight 2380 g

Audio Output

2 x analog XLR symmetrical
2 x analog 6.3 mm jack, unbalanced
1 x digital AES-EBU XLR (48 kHz) with BNC Wordclock input
1 x digital Dante™ (Ethernet) (48 kHz)
Audio output level XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un‑balanced typ. +8 dBu
